Single-Sided Pallet / One-Sided Pallet
TECCELL Series - Logistics & Industrial Materials -
Product Features
The legs are detachable

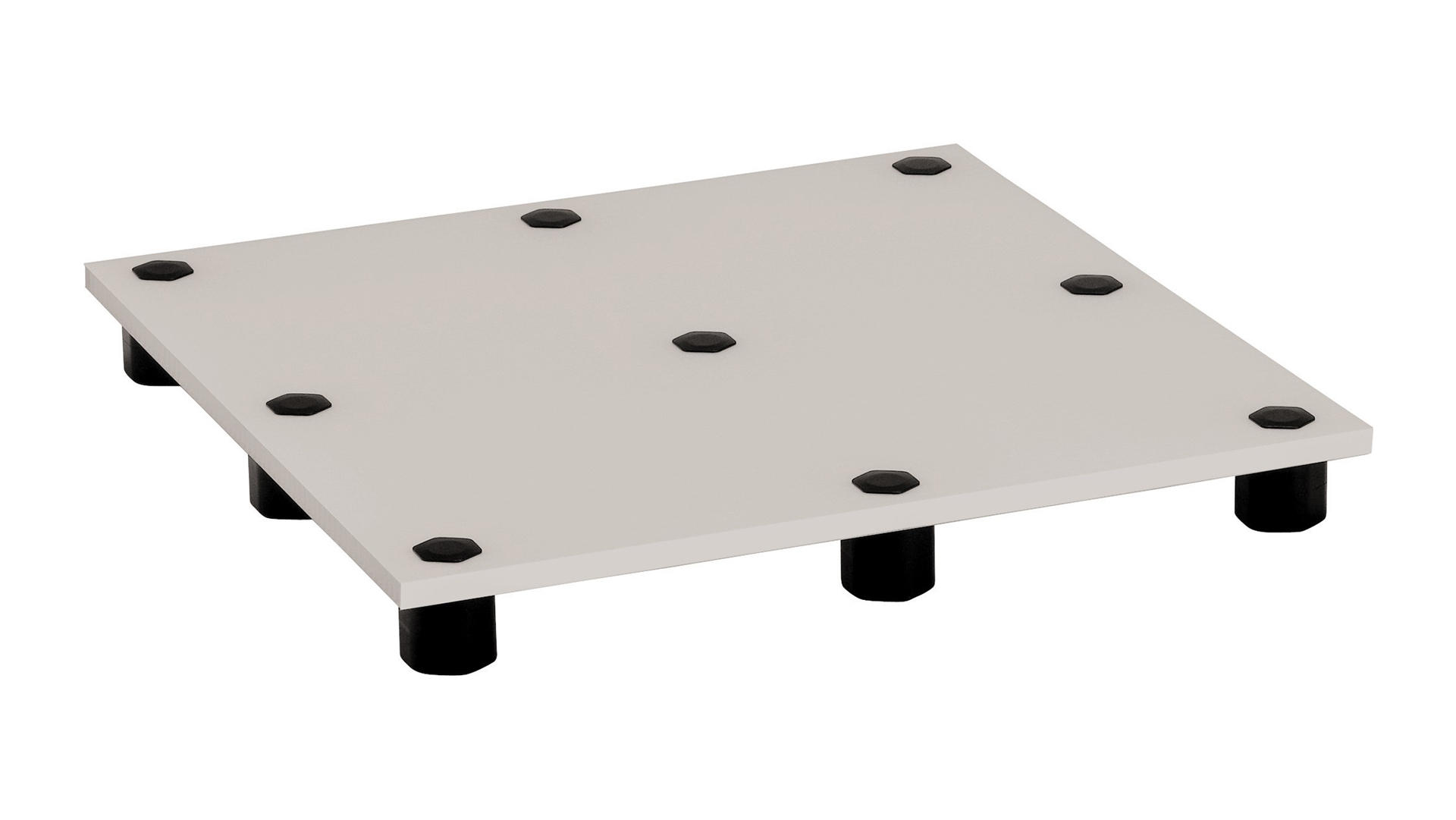

This is a simple pallet where the legs are secured to the main body with screws.
Single-Sided Pallet S4
One-Sided Pallet D4
Product Specifications
| Product Model Number |
External Dimensions |
Legs | Bottom Deck Boards |
Weight |
| TE−P S4 /D4 T30 0890×0650 B6T |
890× 650×138(㎜) 35.04x25.59x5.43(in) |
6 | 0 / 2 |
3kg / 5kg 6.61lb / 11.12lb |
| TE−P S4 /D4 T30 0950×0650 B6T |
950× 650×138(㎜) 37.40x25.59x5.43(in) |
6 | 0 / 2 |
3.5kg / 5.5kg 7.72lb / 12.13lb |
| TE−P S4 /D4 T30 1100×0800 B9T |
1100× 800×138(㎜) 43.31x31.5x5.43(in) |
9 | 0 / 3 |
4.5kg / 8.5kg 9.92lb / 18.74lb |
| TE−P S4 /D4 T30 1100×0900 B9T |
1100× 900×138(㎜) 43.31x35.43x5.43(in) |
9 | 0 / 3 |
5kg / 9kg 11.02lb / 19.84lb |
| TE−P S4 /D4 T30 1200×1000 B9T |
1200×1000×138(㎜) |
9 | 0 / 3 | 6kg / 10kg |
Applicable TECCELL Material : Basic Specifications
|
Product Model Number |
Thickness | Maximum Payload Weight |
| T30-3900 |
30ｍｍ 1.18in |
Single Sided Type Less than 200kg(440.92lb) One-Sided Type Less than 300kg(661.39lb) |
