Printing Line Pallet

Logistics & Industrial Materials TECCELL Series

Offset Printing Line Pallet

Line pallet for wood chip contamination prevention

It's a composite board specification with TECCELL as the core material. Plated steel sheets are adhered to the surface, aiding in foreign contamination prevention and process improvement within printing facilities.

①It has the same rigidity as plywood.

②It is flat, so it won't damage the product's paper.

③Design on demand to fit the printing line.

Products Line Up

◆MK Line Pallet for feeders

  • TECCELL product number compatible with T20-2200, with a thickness of 20mm.
  • Material　PP+MK+PVC+AL+SUS+Rubber
  • Maximum Loading Capacity : 800kg (1763.7lb)
Product Name External Dimensions (L×W×H)mm Weight

TE-MKTF T20 1000×0700

 1000×700×22 10kg (22.05lb)

TE-MKTF T20 1100×0800

 1100×800×22 12kg (26.46lb)

Case Study：Adoption at Package Printing Campany

Case Study：Adoption at Package Printing Company

◆Delivery(Discharge) MK Line Pallet

  • TECCELL product number compatible with T13-2200, with a thickness of 20mm.
  • Material　PP+MK+AL+Rubber
  • Maximum Loading Capacity 500～800kg (1102.31lb - 1763.69lb)
Product Name External Dimension (L×W×H)mm Weight
TE-MKTF T13 0800×0600 800×600×13 4.5kg (9.92lb)
TE-MKTF T20 1050×0750 1050×750×20 7.0kg (15.43lb)

Case Study：Adoption at Package Printing Company

◆Offset Printing MK Line Pallet

  • TECCELL product number compatible with T20-2200, with a thickness of 20mm.
  • Material : PP+MK+PVC+AL+SUS+Rubber
  • Maximum Loading Capacity : 800kg (1763.69lb)
Product Name External Dimension(L×W×H)mm Weight
TE-MKML T20 1060×0800×0044 1060×800×44 13kg (28.66lb)

Case Study：Adoption at Package Printing Company

Case Study：Adoption at Film Printing Company

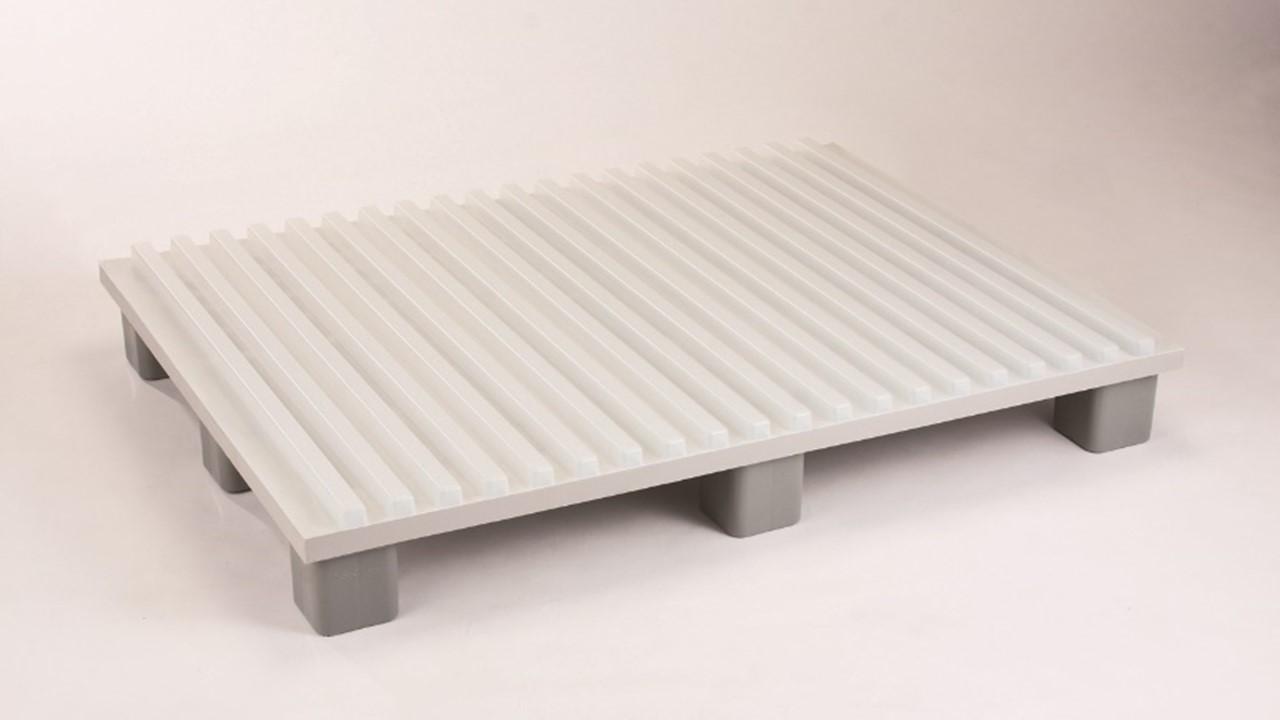

◆PJ4F multi-row pallet for offset printing

Continuous input and output pallet

This is a specification with vacuum-formed products of irregulay shape attached to the sheet paper dedicated pallet (PJ4F).

  • TECCELL product number compatible with T30-4400, with a thickness of 30mm.
  • Materials　Pallet：PP+TALC　　Protrusions：PP
  • Maximum Loading Capacity　Less than 800kg (1763.7lb) *It varies depending on the conditions.
Product Name External Dimensions (L×W×H)mm Weight

TE-PJ4F ML T30 1060×0805×0152

 1060×805×152 8.5kg (18.74lb)
