Honeycomb Core Panel "TECCELL"

Transcend the Ordinary : The Featherlight Pinnacle Material

TECCELL, the Honeycomb Core Born from the World's First Thermoplastic Continuous Molding Technology

Honeycomb core is a collection of hexagonal cells and is considered the most superior sandwich core material in terms of mechanical properties.

Its strength-to-weight ratio is among the highest in all structural materials.

TECCELL, a honeycomb sandwich panel made of lightweight and highly rigid material, is a composite material with excellent environmental performance, including resource conservation and CO2 reduction,and contributes to energy conservation in all industries. Futhermore, TECCELL can be used in a wide range of fields, as it can add value by laminating various materials such as metals, melamine laminated panels, and non-woven fabrics.

Click to enlarge

Values

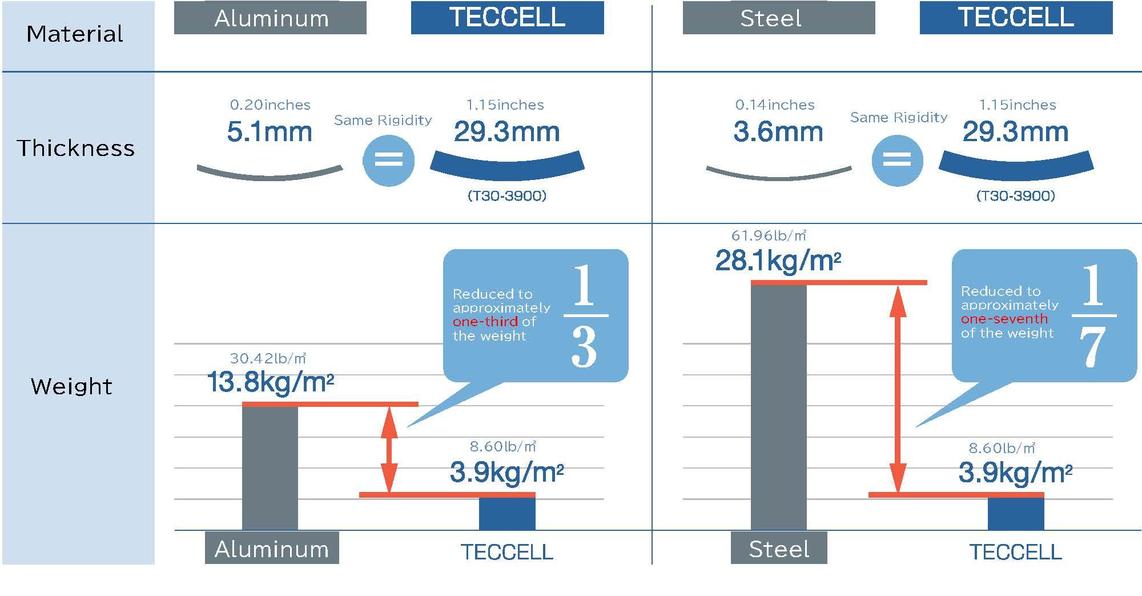

① Lightweight and High-rigidity (Comparison of weight with other materials of the same bending stiffness)

Compare to metal materials such as steel and aluminiumm, significant weight reduction is possible while maintaining equivlent bending rigidity.

Click to Enlarge

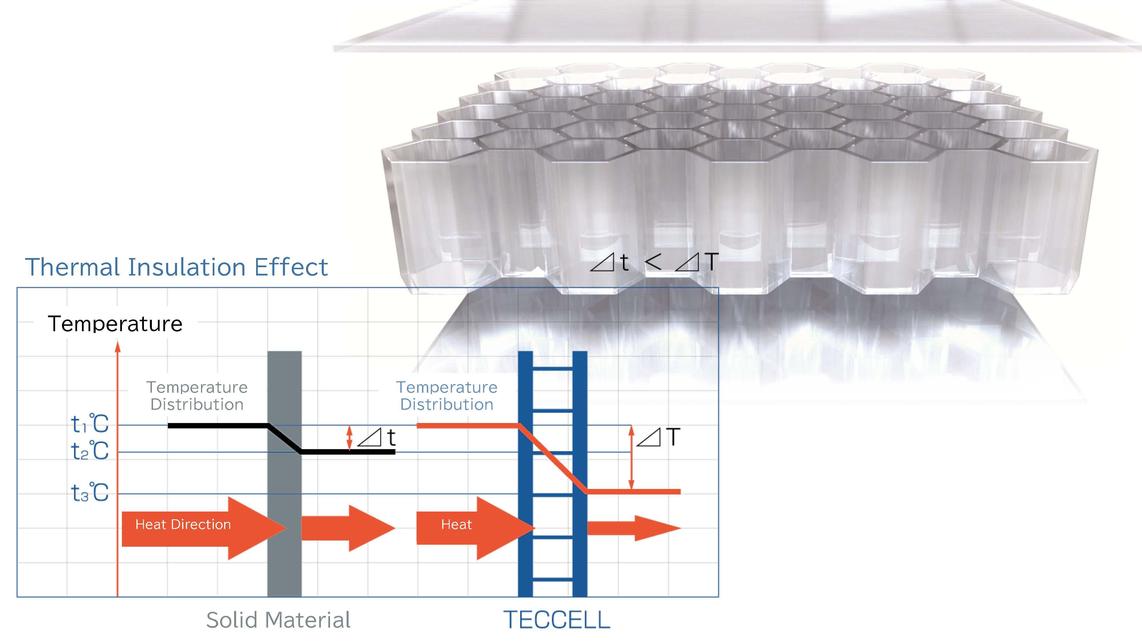

② Thermal Insulation

TECCELL, which uses PP(Polypropylene), has a low thermal conductivity of the material itself. Futhermore, the honeycomb core's unique hollow structure increases thermal insulation properties due to an air layer with extremely low thermal conductivity.

Click to Enlarge

③ Impact Absorption

The honeycomb core buckles and absorbs energy and dramatically absorbs impact. The motorcycle chest protector has a proven track record of meeting Europoan CE Standard Level 2 (THE HIGHEST CLASS)

Example of Commercialization

④ Sound Absorption Effect

TECCELL SAINT has a sound absorption effect by making small holes on the surface of TECCELL. This honeycomb panel is named "TECCELL SAINT" and contributes to various noise reduction measures.

TECCELL SAINT WEBSITE ★The linked page is available in Japanese only★

⑤ Various Combinations with Different Materials

When combined with different materials such as aluminium and non-woven fabrics, it becomes a more highly functional material.

Combination with defferent materials

⑥ Ease of Processing

The ease of cutting and post-processing enables the creation of original and functional products.

Ease of Processing & Product Originality

Basic Specifications

A diverse lineup based on thermoplastic resin enable various applications.
