Plastic Spool Cable Drum

Plastic Spool Cable Drum

This is a durable for cable spooling. It is moisture-resistant and maintains a consistent weight.

  • It excels in corrosion resistance, insect resistance, and rust resistance.
  • It is made from polypropylene as a raw material, making it recyclable.
  • It features a lightweight and simple structure that allows for quick assembly and desassembly.

Product Specifications

List of Product Specifications

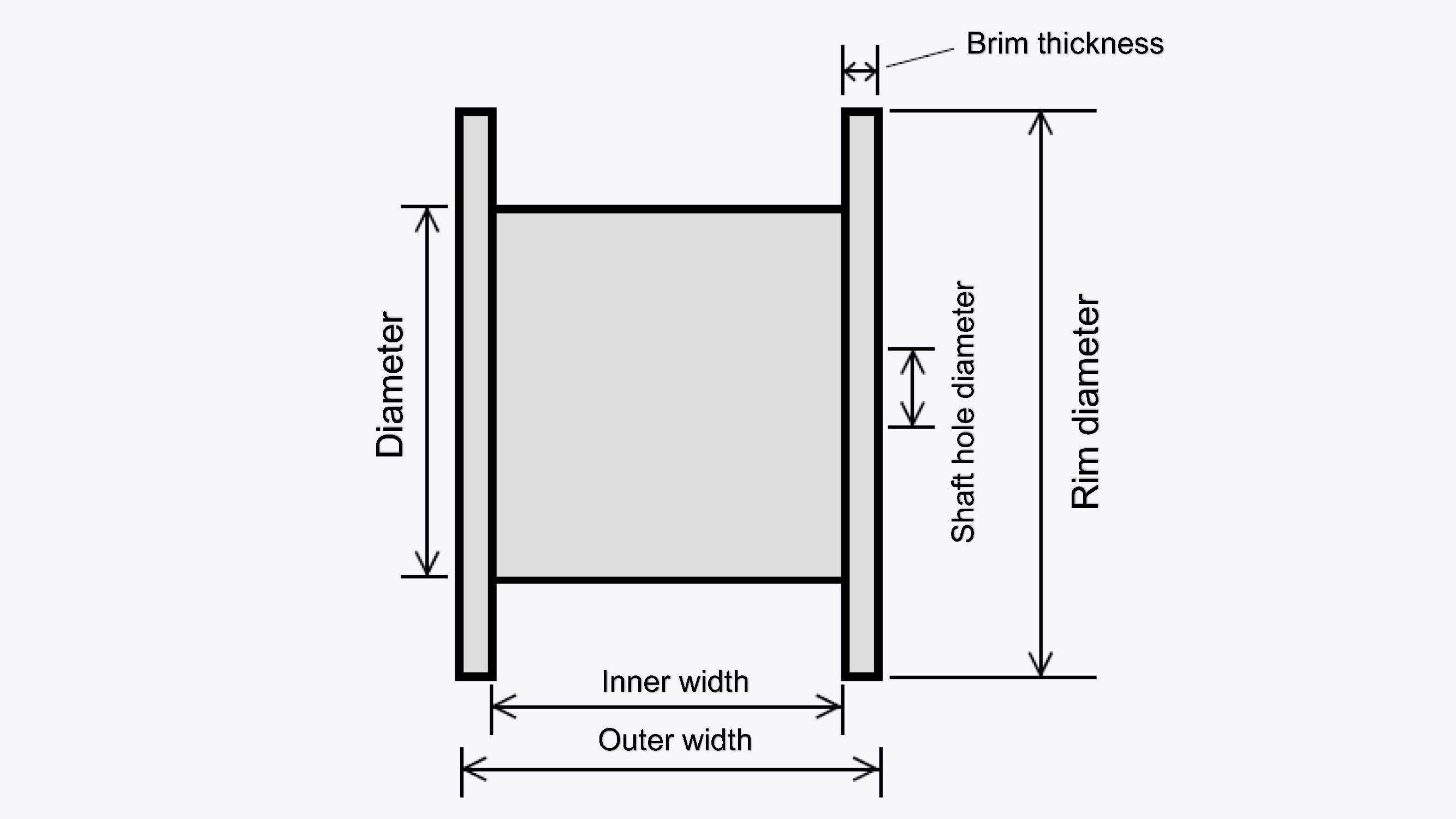

Product Name Flange Diameter Shell Diameter Inner Width Outer Width Shaft Hole Diameter Frange Thickness Starting Mouth Size Numbers of Bolts Size of Bolts Product Weight
PL3-3 580 300 328 400 50 36 26h×120ｗ

4

 ｗ3/8×415 6kg(13.23lb)
PL3-4 610 300 328 400 50 36 25ｈ×120ｗ 4 W3/8×415 7kg(15.43lb)
PL4-6 760 350 328 420 50 46 30ｈ×150ｗ 4 10×430 13kg(28.66lb)
PL4-7 795 350 328 420 50 46 30ｈ×190ｗ 4 10×555

15kg(33.07lb)

PL5-6

 820 400 428 536 75 54 32h×195w 4 10×555 20kg(44.09lb)

PL6-4

910

 450 428 540 75 56 35h×240w 4 10×555 24kg(52.91lb)
PL6-6 970 450 428 540 75 56 40ｈ×240ｗ 4 10×555 35kg(77.16lb)
PL7-3 970 500 528 642 75 54 53h×300ｗ 4 10×655 28kg(61.73lb)
PL-8-6 1150 600 528 640 75 56 60h×320ｗ 4 W3/8×415 43kg(94.79lb)

*Standard Color : Gray
※Maximim Spooling Weight is 750kg (1653.47lb)
